EasyHook Round DuoPower 6x30 PB NV
EasyHook
Art.-No. 564164

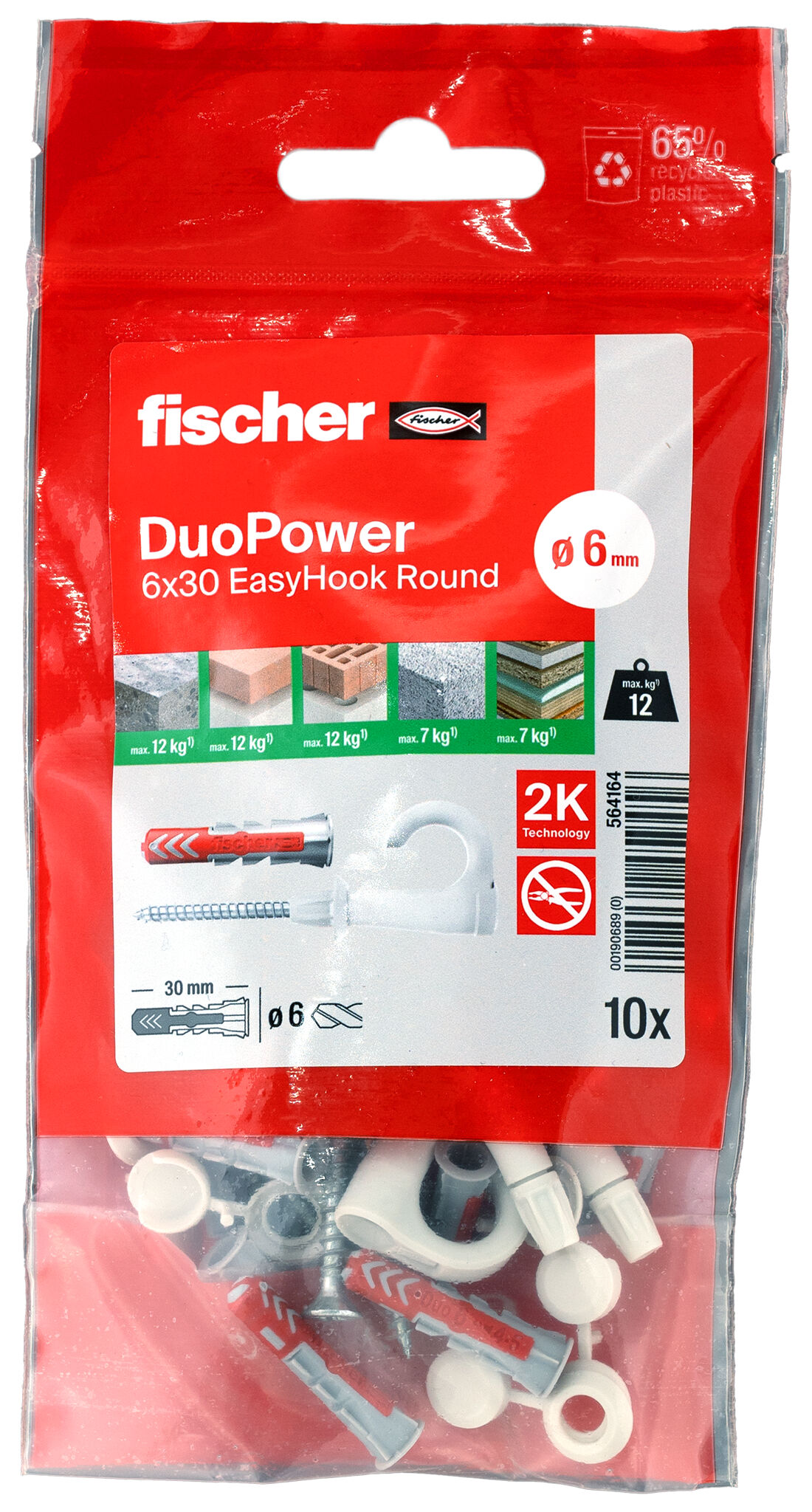

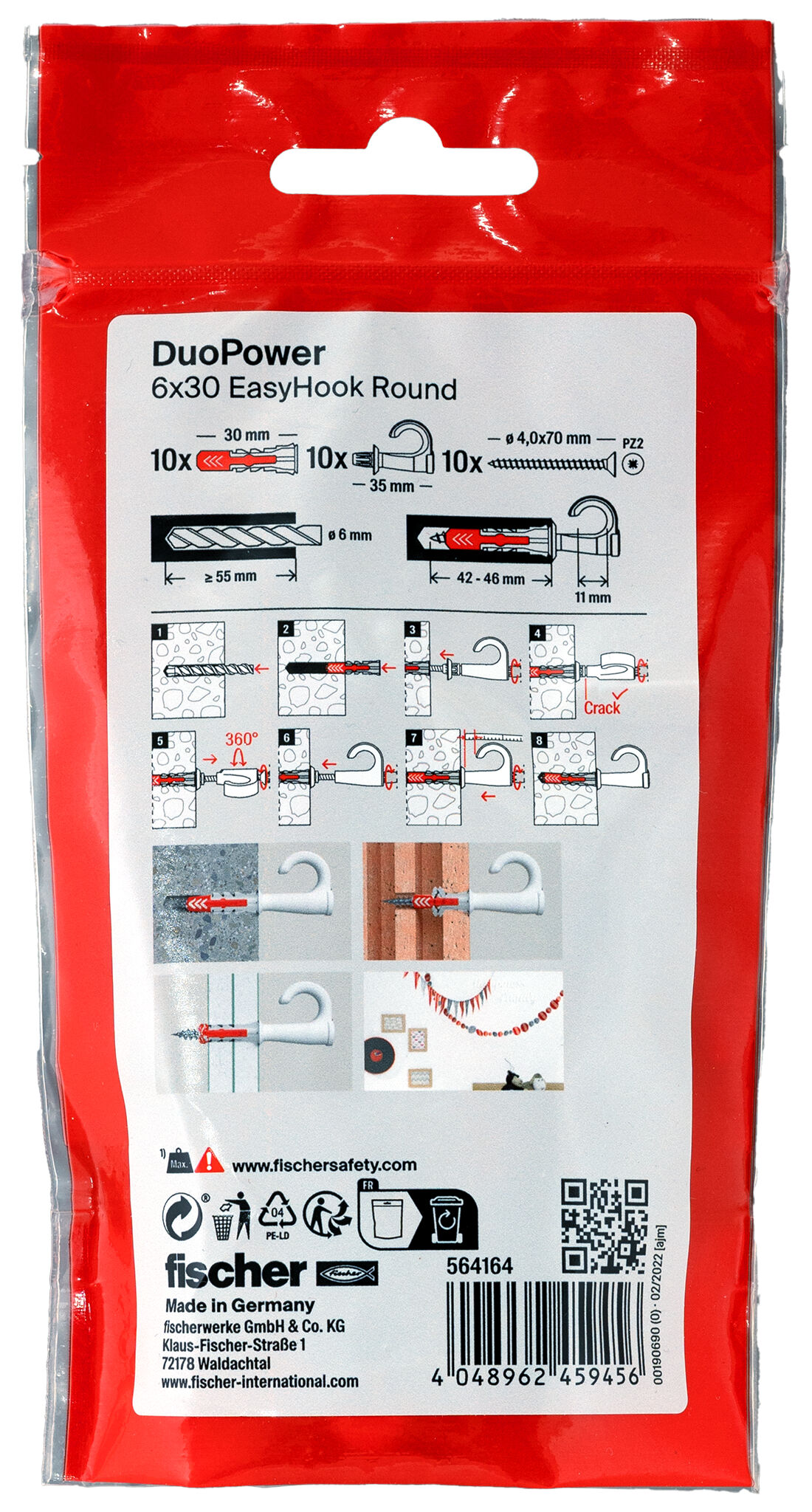

fischer EasyHook Round DuoPower 6x30 PB NV
Product variants
Download of image data
The advantages / Product description
Assembly instruction
Functioning
Mounting Strip 1 Picture
1
/ 7
1
2
3
4
5
6
7
Mounting Strip 2 Picture
1
/ 8
1
2
3
4
5
6
7
8
Mounting Strip 3 Picture
1
/ 8
1
2
3
4
5
6
7
8
Technical data
Drill diameter
(
d
0
)
6
mm
Min. drill hole depth
(
h
1
)
40
mm
Min. panel thickness
(
d
p
)
12,5
mm
Min. bolt penetration
(
l
E,min
)
35
mm
Anchor length
(
l
)
30
mm
Screw
(
d
s
x l
s
)
4.0 x 70
mm
Drive
PZ2
Wall distance
(
t
fix
)
24.0 - 28.0
mm
Amount
10
St.
Packaging
Polybag
GTIN (EAN-Code)
4048962459456
Documents for download
Load Table
pdf,
EasyHook Angle in combination with DuoPower - Recommended loads for a single anchor.
Load Table
pdf,
EasyHook Round and Loop in combination with DuoPower - Recommended loads for a single anchor.
Marketing Documents
pdf,
EasyHook. Turn screws into hooks.
