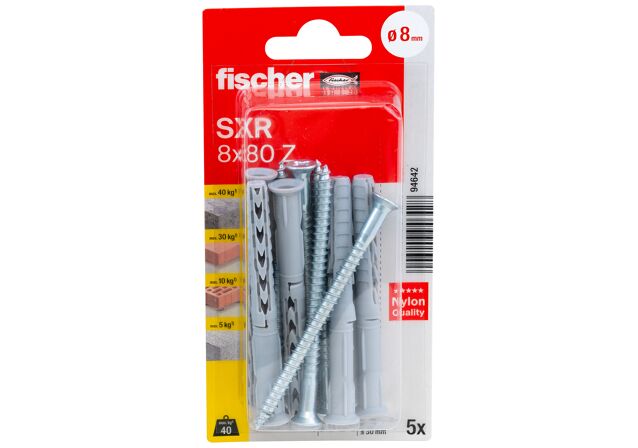

fischer Frame fixing SXR 8 x 80 Z with countersunk wood screw K SB-card

Name: fischer Frame fixing SXR 8 x 80 Z with countersunk wood screw K SB-card
Brand: fischer

Product variants

Download of image data

Top Features

Cost-effective fixing due to low anchorage depth.

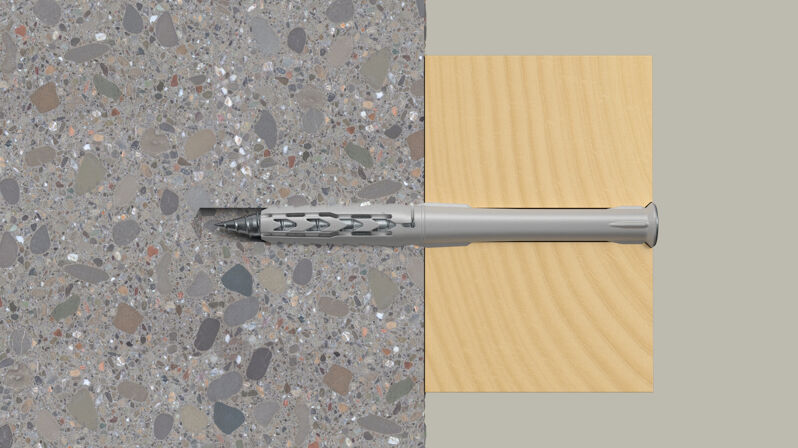

Plug expands in solid building materials.

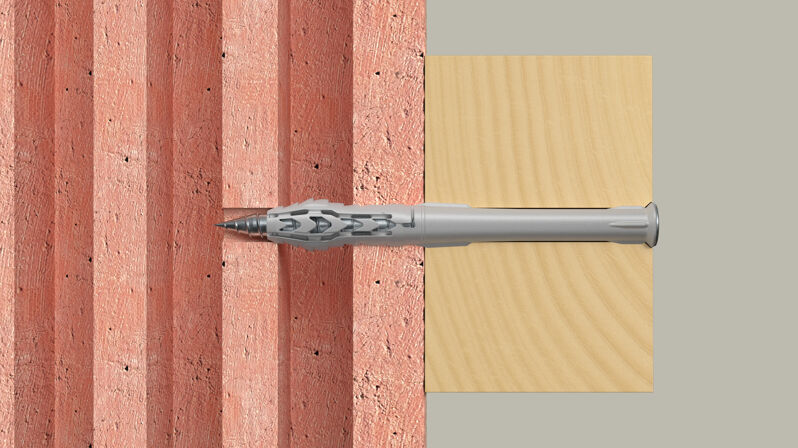

The plug anchors itself in the cavity in perforated building materials.

The efficient with short expansion element.

Advantages

The special functioning allows for use in solid and hollow building materials, ensuring an economical fixing.
The ETA assessment covers use in a range of solid and hollow building materials, and guarantees a secure fixing.
The specially developed combination of plugs and screws ensures the very best handling. The plug has a noticeable hold, making installation more convenient.
Extensive range with diameters of 6, 8 and 10 mm, usable lengths up to 210 mm.

The fischer frame fixing SXR is a plug made of high-quality nylon. Due to the special plug geometry, the SXR can be used in solid and hollow building materials. The frame fixing can be used in a particularly cost-effective manner due to the low anchorage depth of only 50 mm. The fischer frame fixing SXR is suitable for fixing timber substructures, coat racks, and kitchen cabinets.

Applications

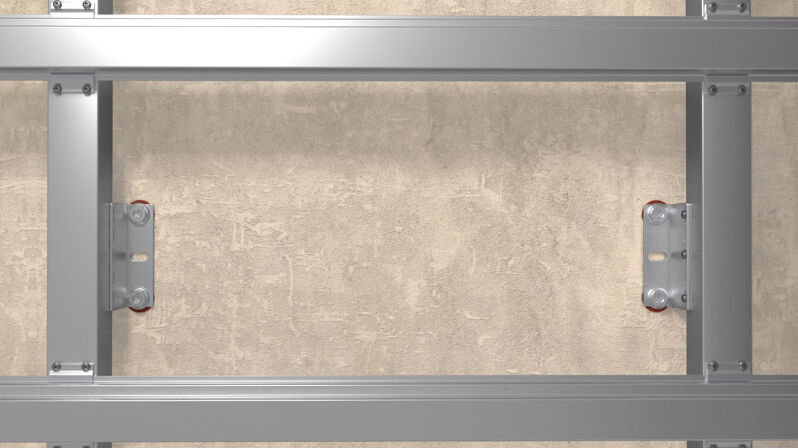

Façade, ceiling and roof substructures made of wood and metal
Windows
Gates and doors
Wardrobes
Kitchen hanging cabinets
Squared timbers
Beams
TV consoles
Wall covering
Metal brackets
Metal supports
Cable ducts
Cable trays

Building materials

Suitable for:

Vertically perforated brick
Aerated concrete
Hollow blocks made from lightweight concrete
Perforated sand-lime brick
Thermal insulation blocks
Solid block made from lightweight and normal weight concrete
Solid brick
Solid sand-lime brick
Concrete ≥ C12/15
Natural stone with dense structure
Solid panel made from gypsum

You can find detailed information on building materials in the registration document.

Drill diameter ( d₀ )	8 mm
Anchor length ( l )	80 mm
Min. drill hole depth for through fixings ( h₂ )	90 mm
Usable length at anchorage depth 50mm ( t_fix )	30 mm
Screw diameter ( d_s )	5.5 mm

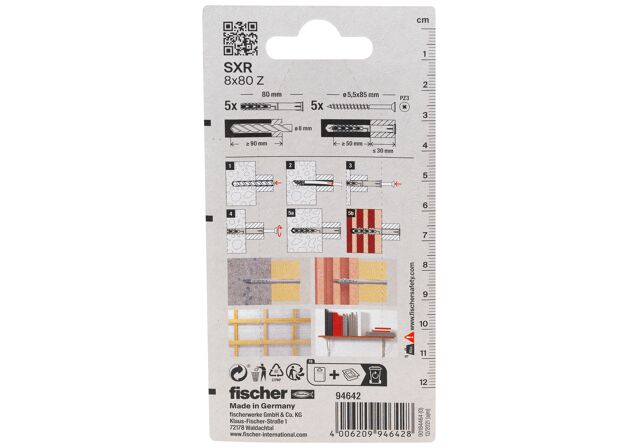

Contents	5 x SXR 8 x 80, 5 countersunk-head screw 5.5 x 85
Amount	5 St.
GTIN (EAN-Code)	4006209946428
