The stress-free fixing reduces tensions inside the glass.
Accessori
Art. n. 804063
CNC adapter
Art. n. 019266
FZPB 13 G7
Art. n. 802506
STU 10-30 dial gauge
Art. n. 802507
MST-D, digital caliper
Art. n. 019265
FZPB 13 G6
Art. n. 803748
SAG M8, setting adapter
Vantaggi / descrizione del prodotto
The glass point holder for aesthetic fixing of laminated composite safety glass.
Advantages
The geometry of the anchor requires only a small drill hole diameter, allowing for a discreet and visually attractive fixing solution.
There is no need to drill through the glass façade panel to install the anchor. This adds more safety. The fastening point remains inside the façade panels and does not penetrate through to the outside. This reduces the danger of contamination and ensures a good seal.
Create an undercut drill hole and chamfer the edge of the drill hole in one work step.
The glass point holder with for aesthetic fixing of laminated composite safety glass in suspended, back-ventilated façades.
Applicazioni e Certificazioni
Applications
Exterior façades
Interior façades
Glass façades
Building materials
Laminated composite safety glass (>18mm)
Maggiori informazioni su materiali di supporto, ecc. sono disponibili nella documentazione tecnica.
Certificazioni
ETA-16/0302
Istruzioni di montaggio
Functioning
Before glass hardening: use wet diamond drilling - first cylindrical, then conical - to drill an undercut hole.
After drilling the glass, the glass must be hardened before the undercut anchors can be set.

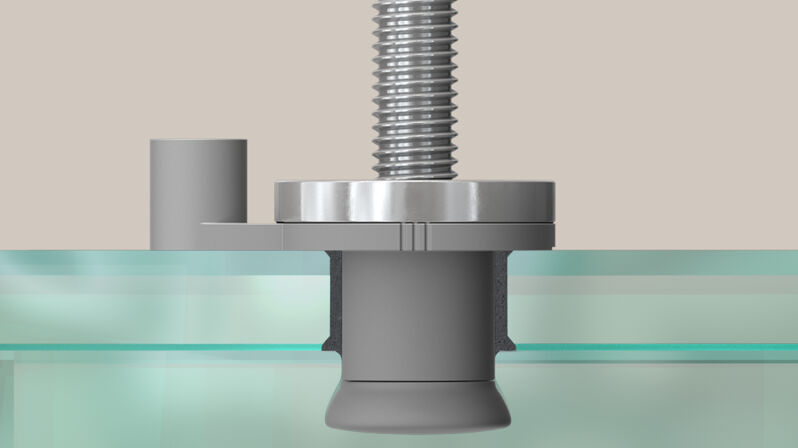

When the undercut anchor is set, an optimal, positive-locking connection is created between the expanding part and the drill hole.
