For fixing metal façades in ventilated rainscreen façades.

Panel fasteners clip ATK 107

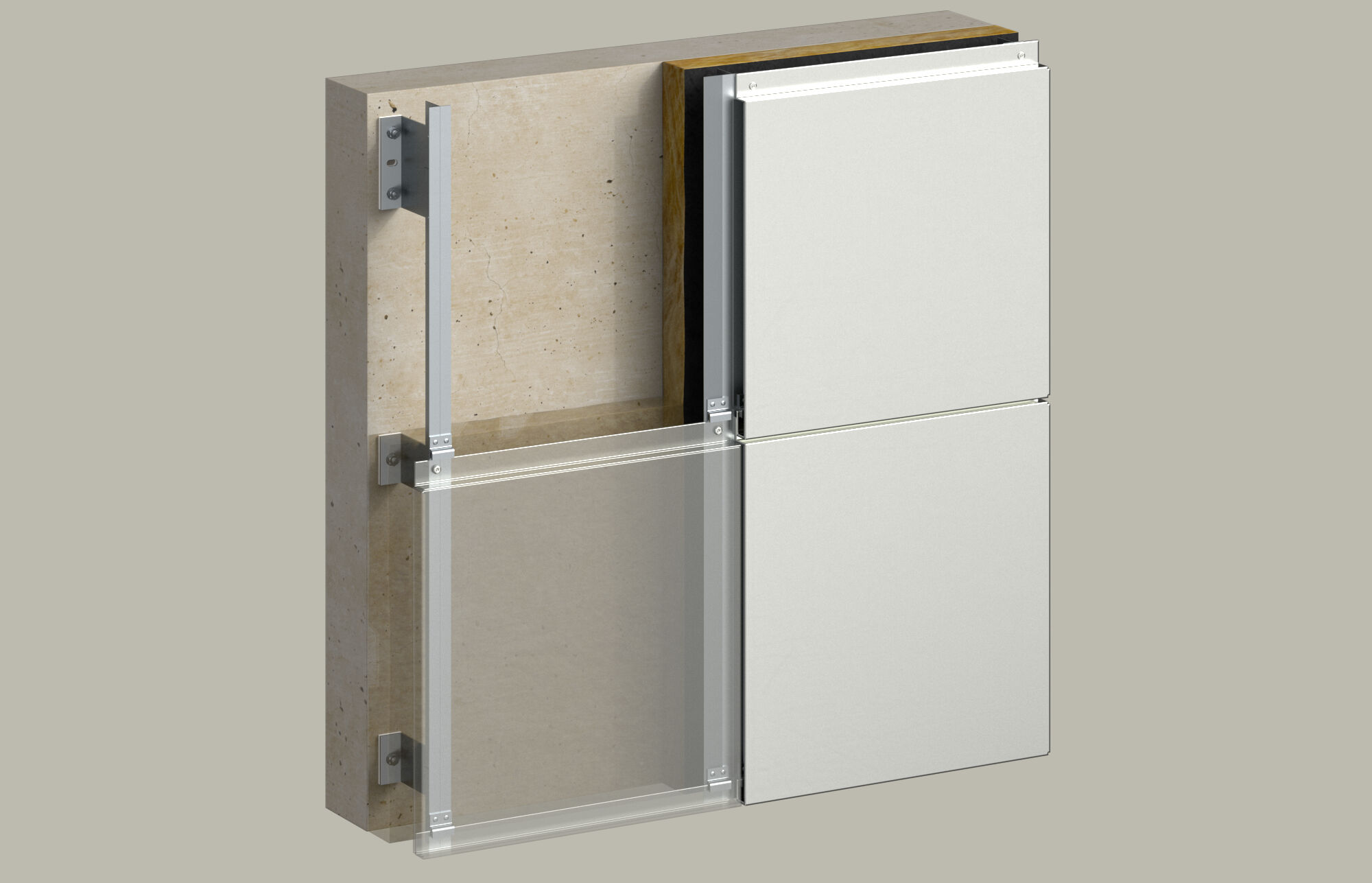

The ATK 107 clips are mainly used for fixing metallic cassettes and plates. They are riveted or screwed to the subframe system according to static calculations and requirements. The internal rubber fixes the façade panel and prevents any potential noise caused by panel movement.

Product variants

Download of image data

Product variants

17 Product variant (s)

Panel thickness

Width

Height

Thickness

Dimensions

System

Viewed 17 of 17 variant (s)

DOP - Declaration of Performance

pdf, DoP: BWM-LE-005

Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: No performance declared

Created on 05/08/2024

DOP - Declaration of Performance

pdf, DoP: BWM-LE-006

Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: According to EN 1999 or EN 1993, see design specifications and calculations

Created on 05/08/2024

DOP - Declaration of Performance

pdf, DoP: BWM-LE-007

Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: Provided by ordering party

Created on 05/08/2024

DOP - Declaration of Performance

pdf, DoP: BWM-LE-008

Declaration of Performance for parts for subframe system construction made of aluminium / stainless steel for building envelopes (Wall brackets, wall holders, extrusion profiles, clasps, fixing clamps) - Structural design: According to specification by the ordering party

Created on 05/08/2024

Panel thickness ( d_p )	2.0 mm
Width	30 mm
Height ( H )	36 mm
Thickness	3 mm
Dimensions	5,1 mm
System	—
Contents	100 x clips
Amount	1 St.
GTIN (EAN-Code)	4048962382396

Panel thickness ( d_p )	4.0 mm
Width	30 mm
Height ( H )	36 mm
Thickness	3 mm
Dimensions	5,1 mm
System	—
Contents	100 x clips
Amount	1 St.
GTIN (EAN-Code)	4048962382419

Panel thickness ( d_p )	2.0 mm
Width	40 mm
Height ( H )	36 mm
Thickness	3 mm
Dimensions	5,1 mm
System	—
Contents	100 x clips
Amount	1 St.
GTIN (EAN-Code)	4048962382457

Panel thickness ( d_p )	2.0 mm
Width	40 mm
Height ( H )	36 mm
Thickness	3 mm
Dimensions	2x 5.1 mm
System	—
Contents	100 x clips
Amount	1 St.
GTIN (EAN-Code)	4048962382426

Panel thickness ( d_p )	3.0 mm
Width	40 mm
Height ( H )	36 mm
Thickness	3 mm
Dimensions	5,1 mm
System	—
Contents	100 x clips
Amount	1 St.
GTIN (EAN-Code)	4048962382464
